BYD 24.0 kWh Home Storage Battery (LVS 24.0) with BMU

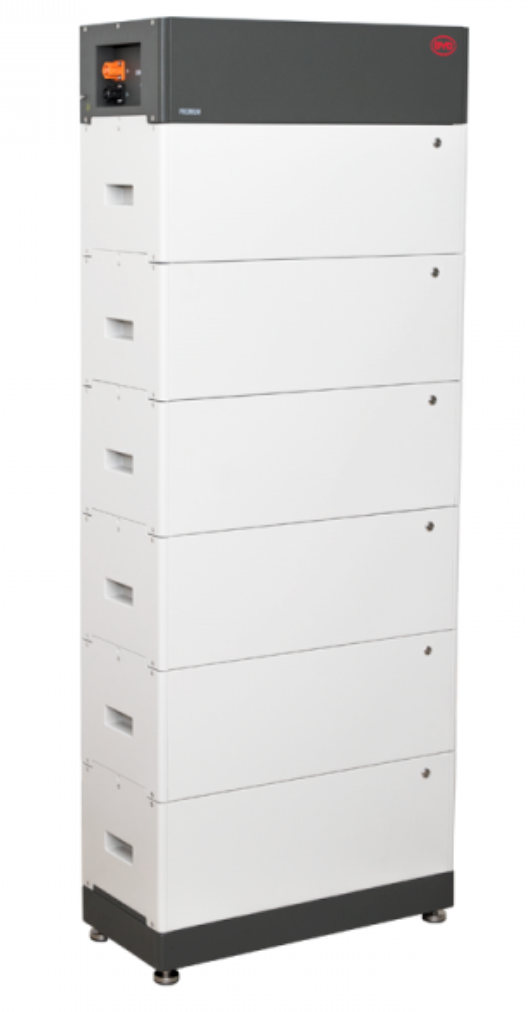

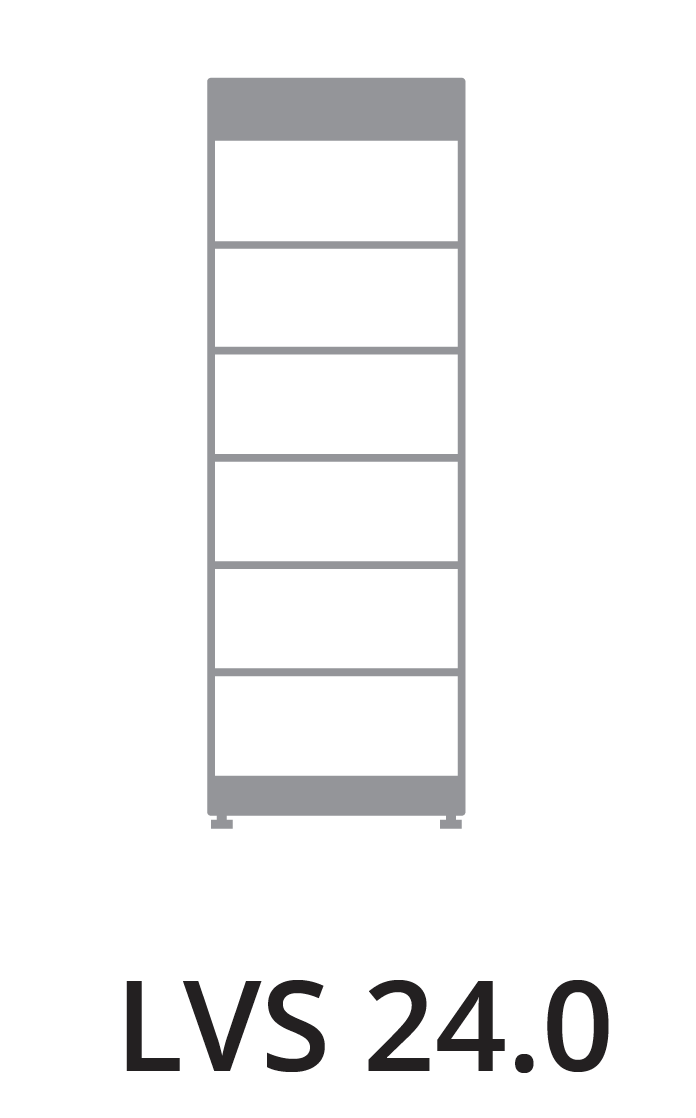

The BYD Battery-Box Premium LVS 24.0 is a high-capacity, low-voltage energy storage solution designed to meet substantial residential and commercial power needs. This module features a compact, single-tower configuration with dimensions of 1643 mm in height, 650 mm in width, and 298 mm in depth, optimizing space efficiency while providing significant energy storage capabilities. Engineered for durability, the LVS 24.0 complies with rigorous charging and discharging guidelines that enhance its longevity, supporting a depth of discharge (DOD) of up to 100%, thus maximizing the utilization of its 24 kWh capacity.

The LVS 24.0 is equipped with state-of-the-art safety features such as over/under voltage protection, overcurrent protection, and temperature monitoring to ensure reliable operation under varying environmental conditions. It supports a nominal discharge and charge current of 250A, providing robust power delivery capabilities suitable for extensive energy demands. For practical usage, it can power a standard refrigerator (200 watts) for approximately 120 hours, or a combination of household appliances like LED lights, a laptop, and a TV (totaling 300 watts) for around 80 hours. Performance may vary depending on the connected devices and their power consumption.

Data Sheet: BYD LVS 24.0 - 24kWh Battery

Warranty: BYD LVS 24.0 - 24kWh Battery

Inverter Compatibility: BYD LVS 24.0 kWh Battery

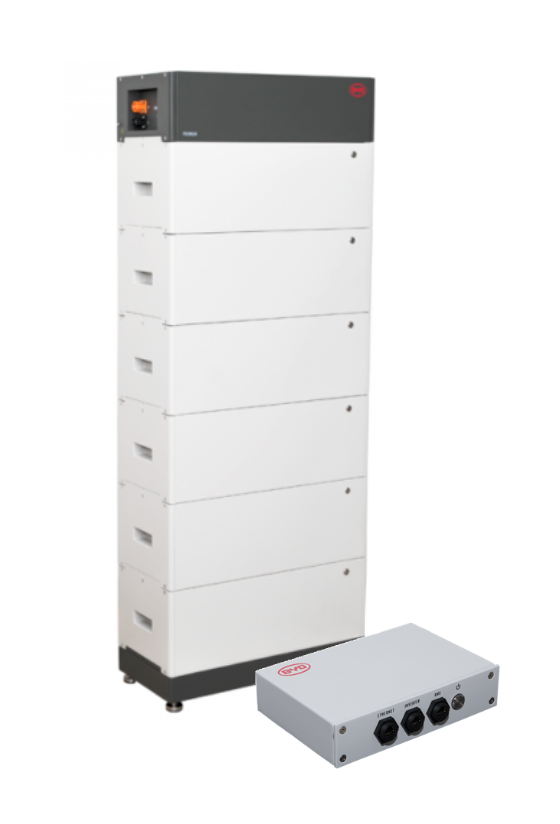

Includes

• 6 x BYD Battery Module (4kWh - LVS Series)

• 1 x BYD Power Distribution Unit & Base (LVS Series)
• 1 x BYD Battery Management Unit (LVS Series)

Weight

289kg (This is a heavy and bulky item, ensure there is suitable site access per our shipping policy)

Height

1643mm

Note

Installation not included in price. For an installation quote, email info@solarsuperstore.com.au.

BYD Warranty

The BYD Battery Limited Warranty covers the Battery-Box Premium LVS series, including LVS 4.0, LVS 8.0, LVS 12.0, LVS 16.0, LVS 20.0, and LVS 24.0 low-voltage lithium iron phosphate batteries for 10 years, ensuring at least 60% of nominal energy retention under specified operating conditions. The warranty includes options for replacement, repair, or compensation for defects in materials and workmanship, provided the batteries are used and installed according to BYD's guidelines. Exclusions apply for improper installation, use with incompatible inverters, unauthorized modifications, and damages caused by natural disasters. This warranty is applicable globally, offering additional protections as specified in local consumer law regulations.

How to select and identify a suitable location to install your battery.

For additional information on Battery Energy Storage Systems, visit: Electrical Regulatory Authorities Council

View their installation requirements here.
