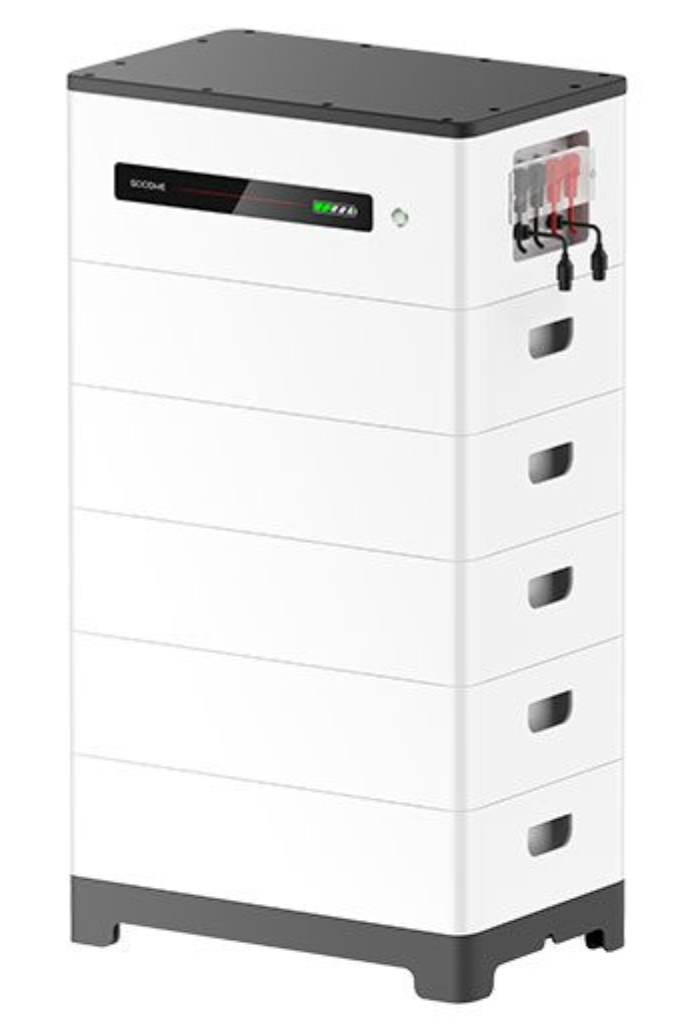

Goodwe 22.4 kWh Home Storage Battery (LX-F-G2)

Goodwe 22.4 kWh Home Storage Battery (LX-F-G2)

Regular price $12,599.00
Regular price Sale price $12,599.00
Sale Sold out
Tax included. Shipping calculated at checkout.

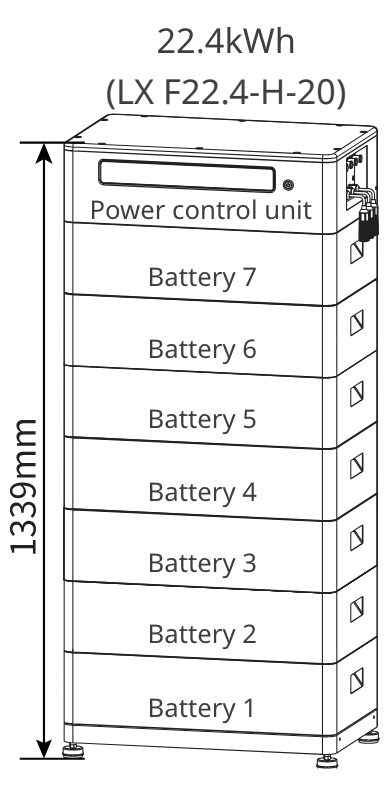

The GoodWe Lynx Home F Series LX F 22.4-H-20 high-voltage (448V - 505.4V DC) battery is a high-performance energy storage solution designed for residential use. Its modular design features compact dimensions (600 mm width, 1339 mm height, and 380 mm depth), making it ideal for installations where space is limited. The LX F 22.4-H-20 is engineered for longevity, with GoodWe recommending specific charging and discharging protocols to enhance its lifespan. This battery system supports a depth of discharge (DOD) of up to 100%, ensuring optimal use of its 22.4 kWh capacity.

The LX F 22.4-H-20 integrates advanced safety features, including over/under voltage protection, overcurrent protection, and temperature monitoring, to ensure reliable operation. Additionally, it supports a nominal discharge and charge current of 35A, providing robust performance. For example, it can power a standard refrigerator (200 watts) for approximately 112 hours, or a combination of basic home appliances such as several LED lights, a laptop, and a TV (totaling 300 watts) for about 74 hours. These estimates may vary based on the devices connected.


Data Sheet: Goodwe LX-F 22.4-H-20 22.4kWh Battery
Warranty: Goodwe LX-F 22.4-H-20 22.4kWh Battery

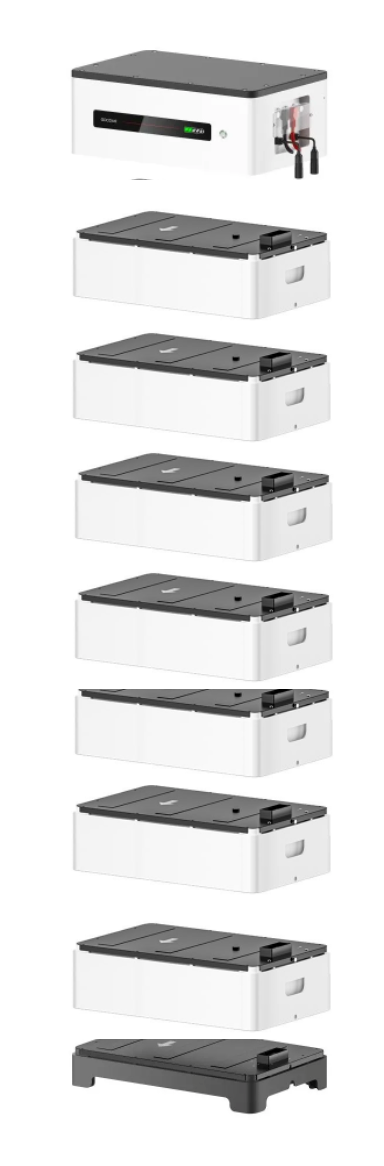

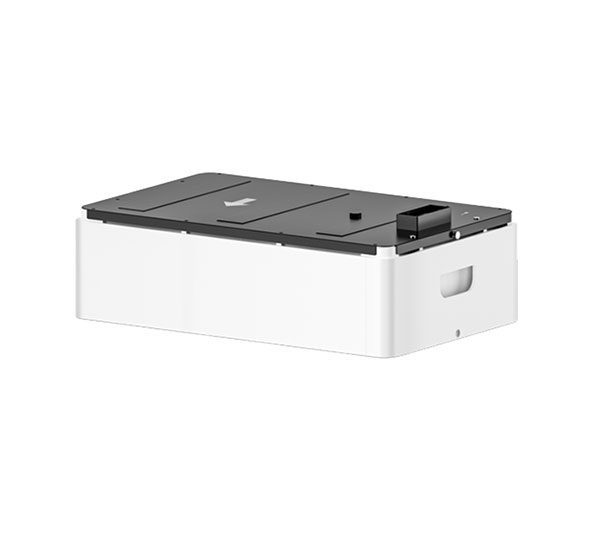

  • 7 x Goodwe Battery Modules (3.2kWh - F G2 Series)

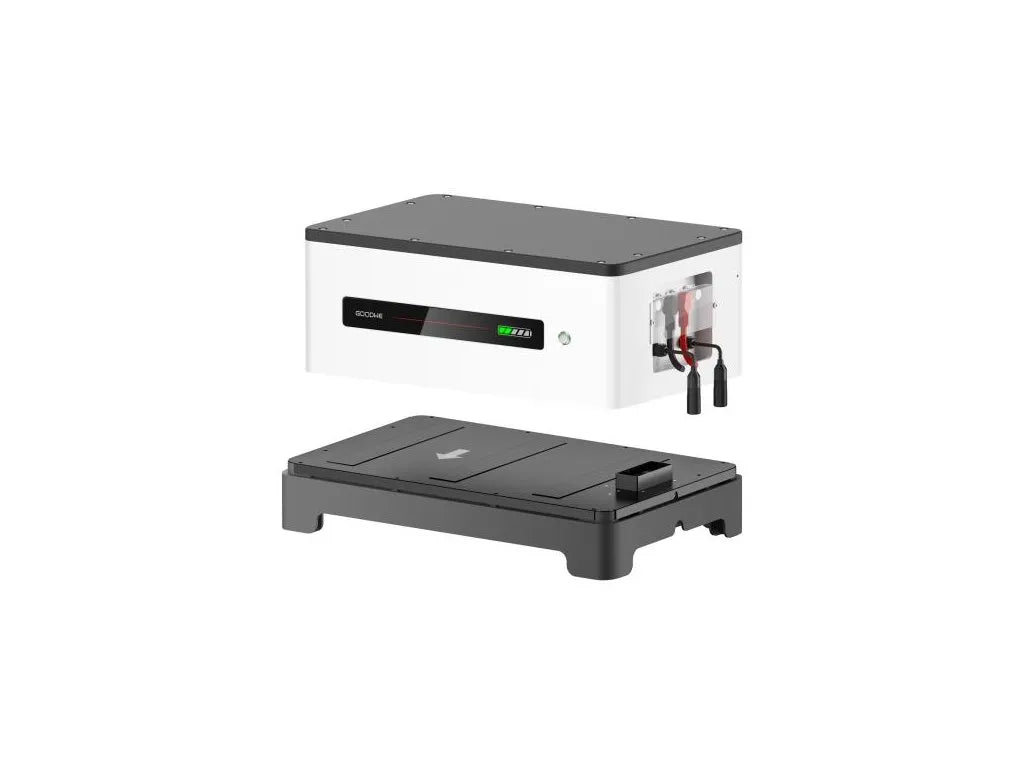

  • 1 x Goodwe Battery Control Module (F G2 Series)



256kg (This is a heavy and bulky item, ensure there is suitable site access per our shipping policy)





Installation not included in price. For an installation quote, email


Goodwe Warranty

The GoodWe Battery Limited Warranty covers the Lynx Series LX F 9.6-H-20, LX F 12.8-H-20, LX F 16.0-H-20, LX F 19.2-H-20, LX F 22.4-H-20, LX F 25.6-H-20, and LX F 28.8-H-20 high-voltage lithium-ion batteries for 10 years, guaranteeing at least 70% of nominal energy retention or specified energy throughput. The warranty includes options for replacement, repair, or compensation for defects in materials and workmanship, provided the batteries are used and installed according to GoodWe's guidelines. Exclusions apply for improper installation, use with incompatible inverters, unauthorized repairs, and natural disasters. This warranty is governed by Australian law, providing additional rights under the Australian Consumer Law.


How to select and identify a suitable location to install your battery.


For additional information on Battery Energy Storage Systems, visit: Electrical Regulatory Authorities Council

View their installation requirements here.
