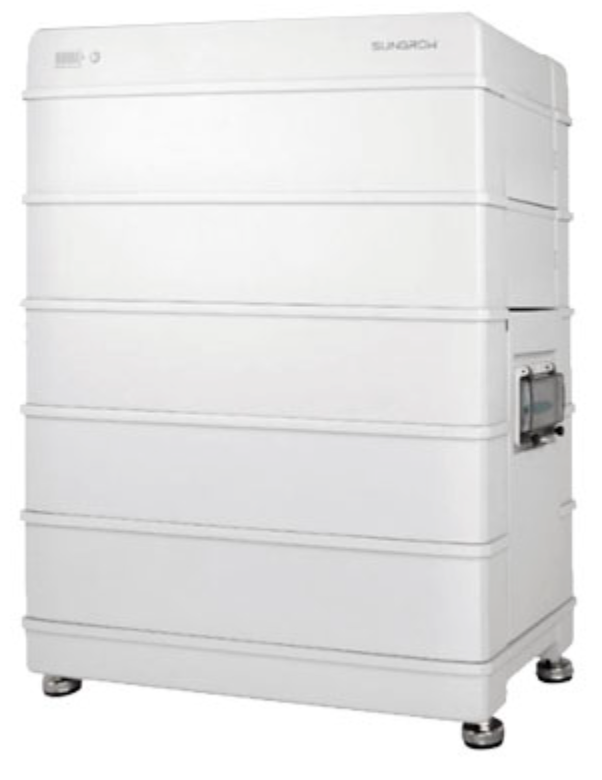

Sungrow 16 kWh Home Storage Battery (SBR160)

The Sungrow SBR160 high-voltage (270V - 365V DC) battery is a high-performance energy storage solution tailored for residential use. Its design features compact dimensions (625 mm width, 805 mm height, and 330 mm depth), making it ideal for installations where space is limited. The SBR160 is engineered for longevity, with Sungrow recommending specific charging and discharging protocols to enhance its lifespan. This battery system supports a depth of discharge (DOD) of up to 100%, ensuring optimal use of its 16 kWh capacity.

The SBR160 integrates advanced safety features, including over/under voltage protection, overcurrent protection, and temperature monitoring, to ensure reliable operation. Additionally, it supports up to 30A continuous charging and discharging current, providing robust performance. For example, it can power a standard refrigerator (200 watts) for approximately 80 hours, or a combination of basic home appliances such as several LED lights, a laptop, and a TV (totaling 300 watts) for about 53 hours. The above are estimates and will vary based on the devices connected.

The SBR160 is part of Sungrow's innovative energy storage product line, known for its high efficiency and reliability in energy management systems.

Data Sheet: Sungrow SBR160 16kWh Battery

Warranty: Sungrow SBR160 16kWh Battery

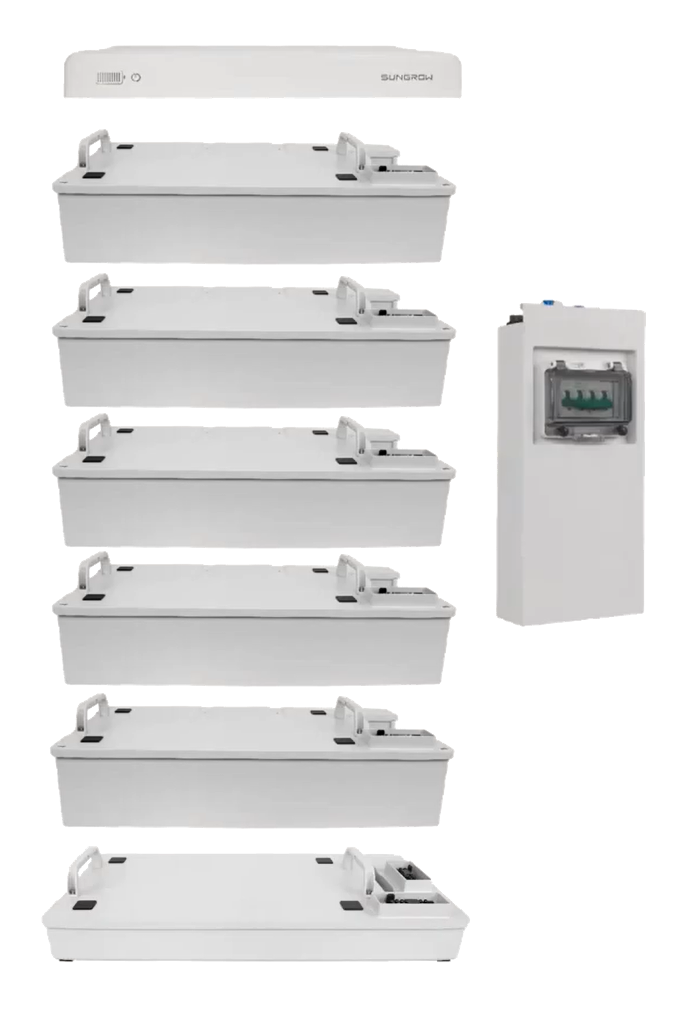

Includes

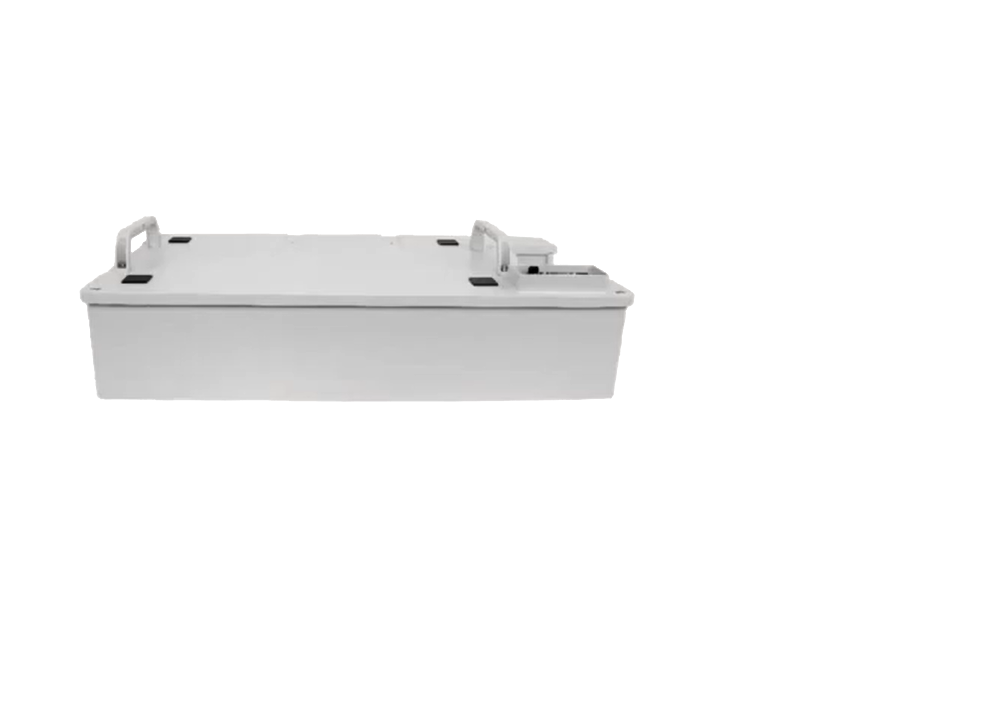

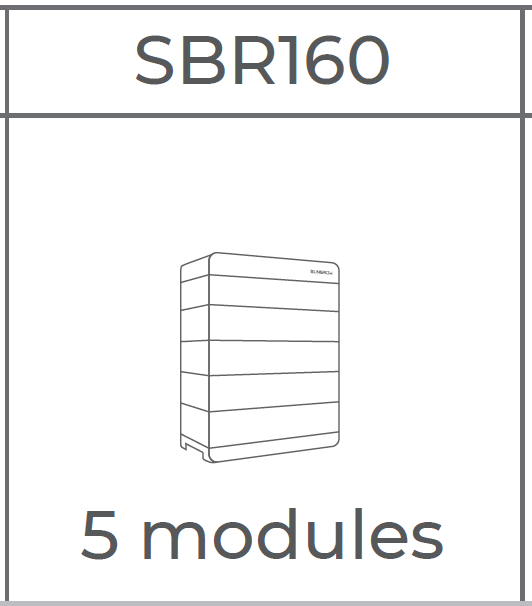

• 5 x Sungrow Battery Modules (3.2kWh - SBR)

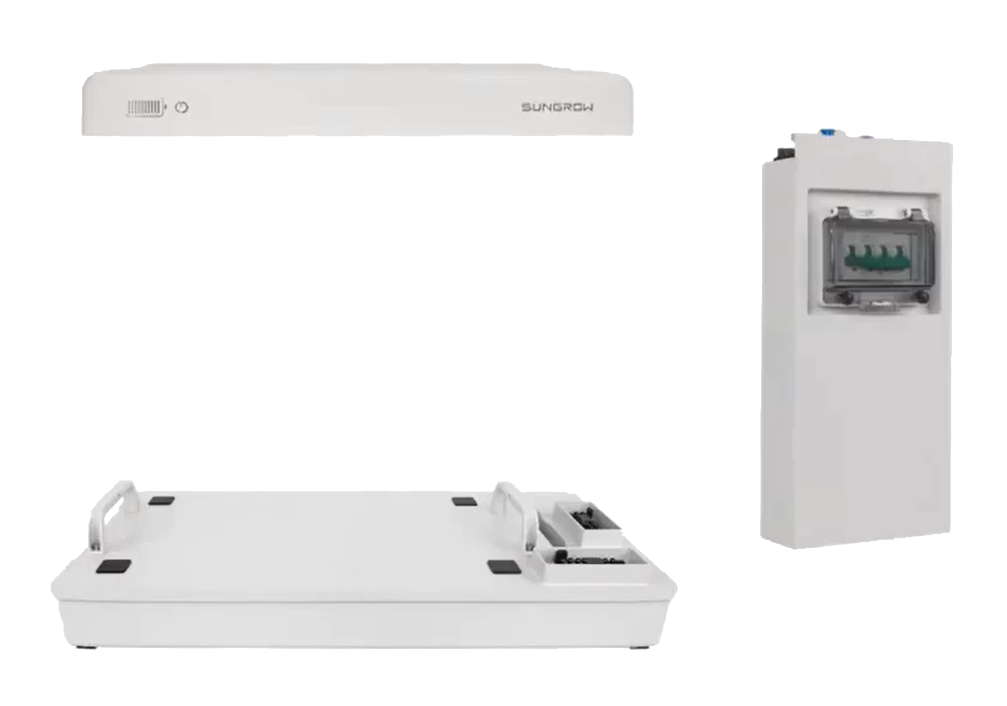

• 1 x Sungrow Battery Kit (SBR)

Weight

180kg (This is a heavy and bulky item, ensure there is suitable site access per our shipping policy)

Height

930mm

Note

Installation not included in price. For an installation quote, email info@solarsuperstore.com.au.

Sungrow Warranty

The Sungrow Battery Limited Warranty covers the SBR096, SBR128, SBR160, SBR192, SBR224, and SBR256 high voltage lithium-ion batteries for 10 years, guaranteeing at least 70% of nominal energy retention or specified energy throughput. The warranty includes options for replacement, repair, or compensation for defects in materials and workmanship, provided the batteries are used and installed according to Sungrow's guidelines. Exclusions apply for improper installation, use with incompatible power conversion systems (PCS), unauthorized repairs, and natural disasters. This warranty is governed by Australian law, providing additional rights under the Australian Consumer Law.

How to select and identify a suitable location to install your battery.

For additional information on Battery Energy Storage Systems, visit: Electrical Regulatory Authorities Council

View their installation requirements here.
